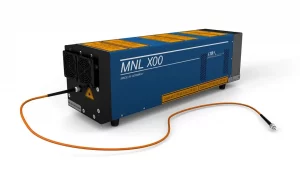

As a pulsed UV laser, the MNL X00 is the ideal light source for bioreader systems and MALDI-TOF imaging. Compact, reliable and cost-effective, it delivers pulse energies of up to 110 µJ and pulse repetition rates of up to 150 Hz (200 Hz) on request.
The Mini Nitrogen Laser MNL X00 is characterized by its long service life, low energy drop and high temporal precision. This is achieved by the following patented innovations:
Up to 400 million laser pulses or maintenance-free operation for up to 4 years are guaranteed. An integrated laser controller enables extensive presettings and simple adaptation to different applications. The firmware offers the option of setting and controlling the laser functions and parameters via a PC interface. All trigger inputs and outputs are monitored by the trigger management system. The laser is supplied with an extra-low voltage of 24 V DC and is air-cooled. The scope of delivery includes a wide-range power supply unit (90 – 260 V, 50 – 60 Hz).
The MNL X00 is largely compatible with lasers of this class on the market and has the necessary certifications for all international markets: CE, ETL Report No. 05KFI005386 (UL, CSA, VDE, Semco), ROHS, FDA. Adaptation kits for installation in MALDI-TOF mass spectrometers or LIF systems from various manufacturers are available from LTB on request.
| Wavelength | 337.1 nm |
|---|---|
| Spectral bandwidth | 0.1 nm |
| Guaranteed pulse energy | depending on model ≥ 60 to ≥ 110 µJ |
| Typ. pulse energy @ number of shots | depending on model 110@100 / 60@200 / 50@200 µJ @ Mio |
| Pulse half-width FWHM, typ. | 3 ns |
| Pulse power, typ. | depending on model 20 to 37 kW |
| Energy stability | ≤ 2 % |
| Beam dimensions, vertical x horizontal, typ. | 3 x 4 mm |
| Divergence, vertical x horizontal 2 | ≤ 3,5 x ≤ 3 mrad |
| Focus stability | < 15 µm |
| Beam exit angle, vertical x horizontal, typ. | 0,5 (± 0.2) x 0 ± 0.1 grad |
| Trigger In | optical or electrical (TTL) |
| Voltage supply | 24 V DC |
|---|---|
| Current consumption | 2.4 A |
| Operating temperature | +15…+38 °C |
|---|---|
| Storage temperature | -10…+60 °C |
| Max. relative humidity | 85 % |
| Air pressure | 750 – 1.300 mbar |
| Dimensions | 335 x 95 x 95 mm |
| Weight | 3.5 kg |
| Power supply dimensions (L x W x H) | 180 x 80 x 50 mm |
| Weight of the power supply unit | 0.6 kg |
| Unit | X06 | X12 | X15 | |
|---|---|---|---|---|
| Wavelength | nm | 337.1 | 337.1 | 337.1 |
| Spectral bandwidth | nm | 0.1 | 0.1 | 0.1 |
| Pulse half-width | ns | 3 | 3 | 3 |
| Guaranteed number of shots | Mio | 400 | 120 | 150 |
| Guaranteed pulse energy | µJ | ≥ 110 | ≥ 70 | ≥ 60 |
| Pulse energy | µJ | 110@100 | 60@200 | 50@200 |
| Pulse power, typ. | kW | 37 | 23 | 20 |
| Follow-up frequency | Hz | 60 | 120 | 150 |
| Energy stability SD | % | ≤ 2 | ≤ 2 | ≤ 2 |
| Beam dimensions, vertical x horizontal, typ. | mm | 3 x 4 | 3 x 4 | 3 x 4 |
| Divergence, vertical x horizontal | mrad | ≤ 3,5 x ≤ 3 | ≤ 3,5 x ≤ 3 | ≤ 3,5 x ≤ 3 |
| Focus stability | µm | < 15 | < 15 | < 15 |
| Beam exit angle, vertical x horizontal, typ. | deg | 0,5 (± 0.2) x 0 ± 0.1 | 0,5 (± 0.2) x 0 ± 0.1 | 0,5 (± 0.2) x 0 ± 0.1 |
| Trigger In | optical or electrical (TTL) | optical or electrical (TTL) | optical or electrical (TTL) | |
| Jitter: ext. trigger - laser pulse | ns | ± 2,5 | ± 2,5 | ± 2,5 |
| Pulse delay: ext. trigger - laser pulse | ns | 1.300 ± 10% | 1.300 ± 10% | 1.300 ± 10% |
| Sync Out (optional) | ||||
| Jitter: elektr. Trigger – Laserpuls | ns | < 0,2 | < 0,2 | < 0,2 |
| Warm-up time | s | < 20 | < 20 | < 20 |
| Control system | automode or software (DLL) via integrated controller | automode or software (DLL) via integrated controller | automode or software (DLL) via integrated controller | |
| Guarantee / Warranty | 400 million pulses or 4 years | 120 million pulses or 2 years | 150 million pulses or 2 years | |
| Zertifizierungen | CE, ETL (ANSI/UL 61010-1, CAN/CSA C22.2#61010-1), FDA1 | CE, ETL (ANSI/UL 61010-1, CAN/CSA C22.2#61010-1), FDA1 | CE, ETL (ANSI/UL 61010-1, CAN/CSA C22.2#61010-1), FDA1 | |
| Laser classification | 3B / IIIb | 3B / IIIb | 3B / IIIb |
MNL X00 -UV Laser |

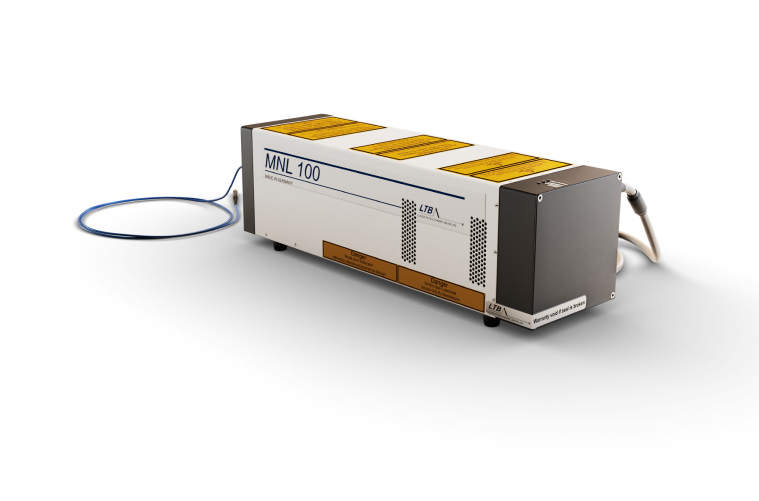

MNL 100 |
