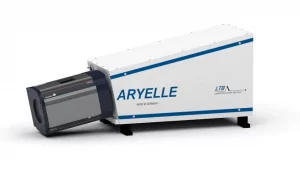

ARYELLE 400

The flagship of the ARYELLE Echelle spectrograph series with very high spectral resolution in the VUV or UV-VIS-NIR wide range at a focal length of 400 mm - for precise elemental analysis with LIBS and Raman spectroscopy.

Highly sensitive with high wavelength stability
High spectral resolution (9,000-50,000)
Large simultaneously measurable wavelength range
Can be combined with various detectors (CCD, ICCD)
High light throughput

Data sheet

Optical design Echelle spectrograph

Focal length 400 mm mm

Aperture ratio f/10

Wavelength range, max. 425-750 nm

Accuracy of the wavelength dial spektrale Auflösung / 4

Weight without detector 12 kg

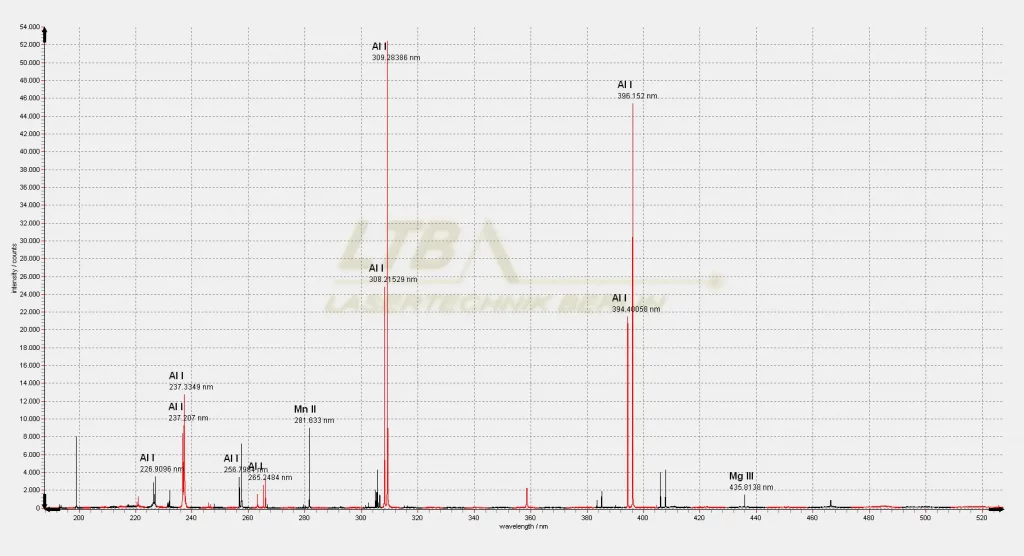

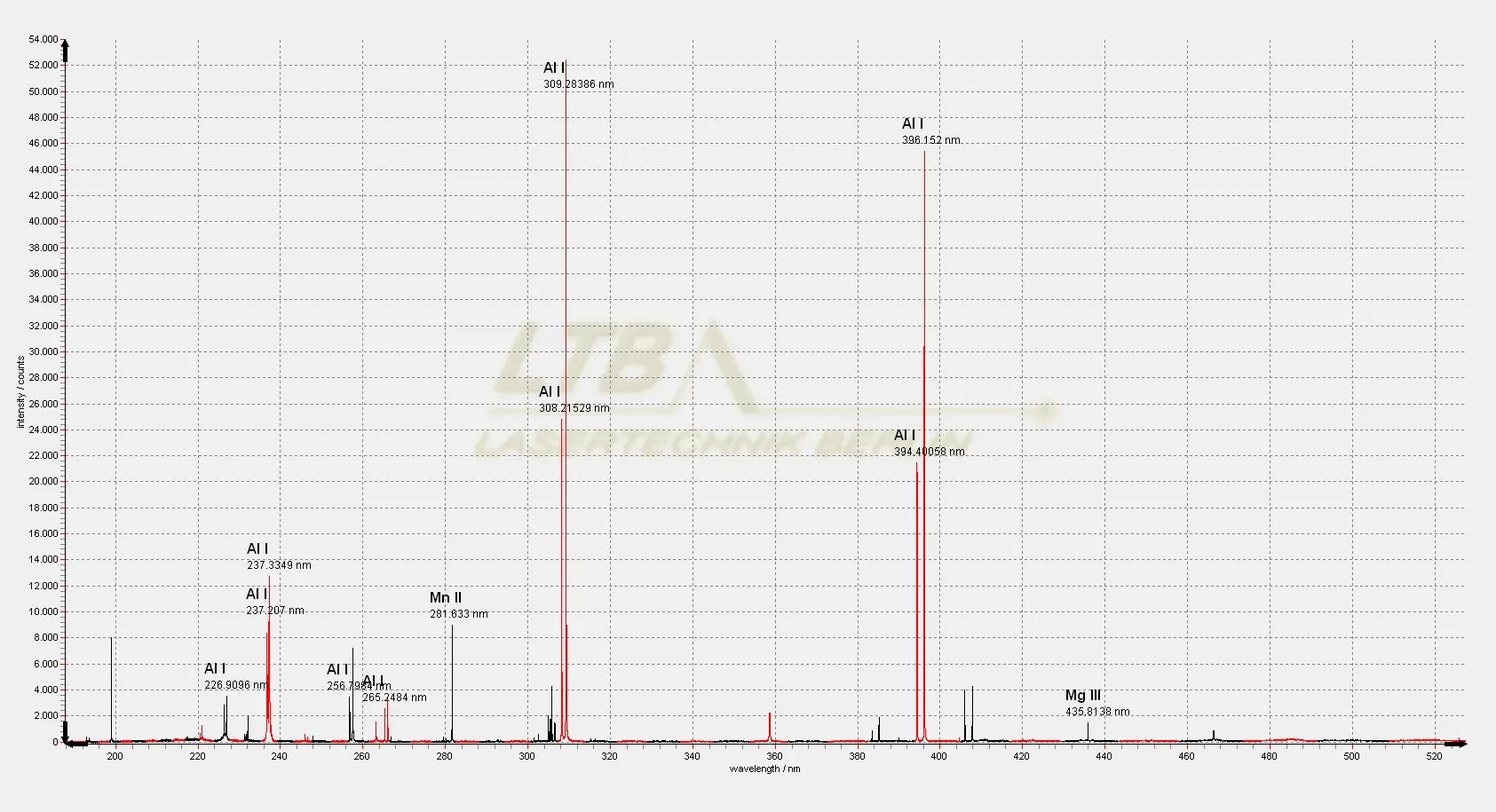

With a focal length of 400 mm and a focal ratio of f/10, the ARYELLE 400 is the spectrally highest-resolution wide-range spectrometer in the ARraY echELLE series. The patented optical design consisting of echelle grating, prism, imaging optics and entrance slit can be customized for the wavelength range and high spectral resolution. Two-dimensional echelle spectra can be measured in the standard configuration with a slit width of 50 µm in the VUV range (175-330 nm) with a spectral resolution of up to 30,000 or up to 15,000 in the UV-VIS-NIR range (330-850 nm), depending on the wavelength range that can be detected simultaneously. Thanks to its optomechanical design, the ARYELLE 400 can be combined with a variety of different CCD and ICCD cameras. A mercury lamp and an internal shutter are used for automatic recalibration of the wavelength scale.

With the Sophi software supplied, all functions of the spectrometer-detector unit are controlled via an intuitive graphical user interface with an integrated script language for automated measurement sequences. Optionally, the operation can be extended by a LabVIEW library. Qualitative multi-element analyses are based on a spectral database evaluation of the detected spectrum. Algorithm-supported quantitative analysis requires calibration with reference materials.

Specifications

Optical design: Echelle spectrograph
Focal length: 400 mm mm
Aperture ratio: f/10
Slit width: 50 µm
Wavelength range, max.: 425-750 nm
Accuracy of the wavelength dial: spektrale Auflösung / 4
Dimensions without detector (L x W x H): 438 x 200 x 232 mm
Weight without detector: 12 kg
Computers: PC incl. TFT or laptop with Microsoft Windows
Software: Sophi, LabVIEW library optional
Dynamic range: 15 bit, AD conversion 16 bit
Light injection: Fiber or mirror optics

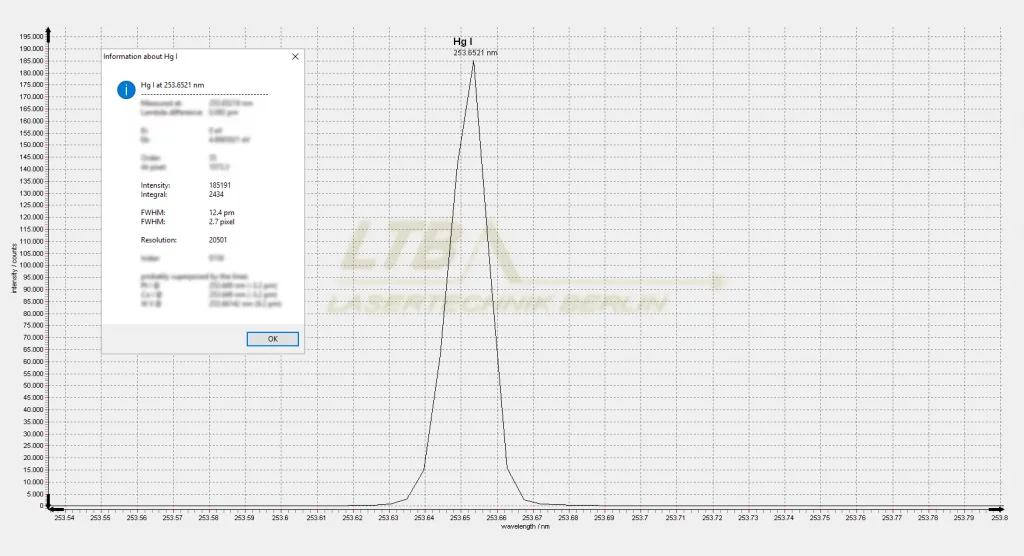

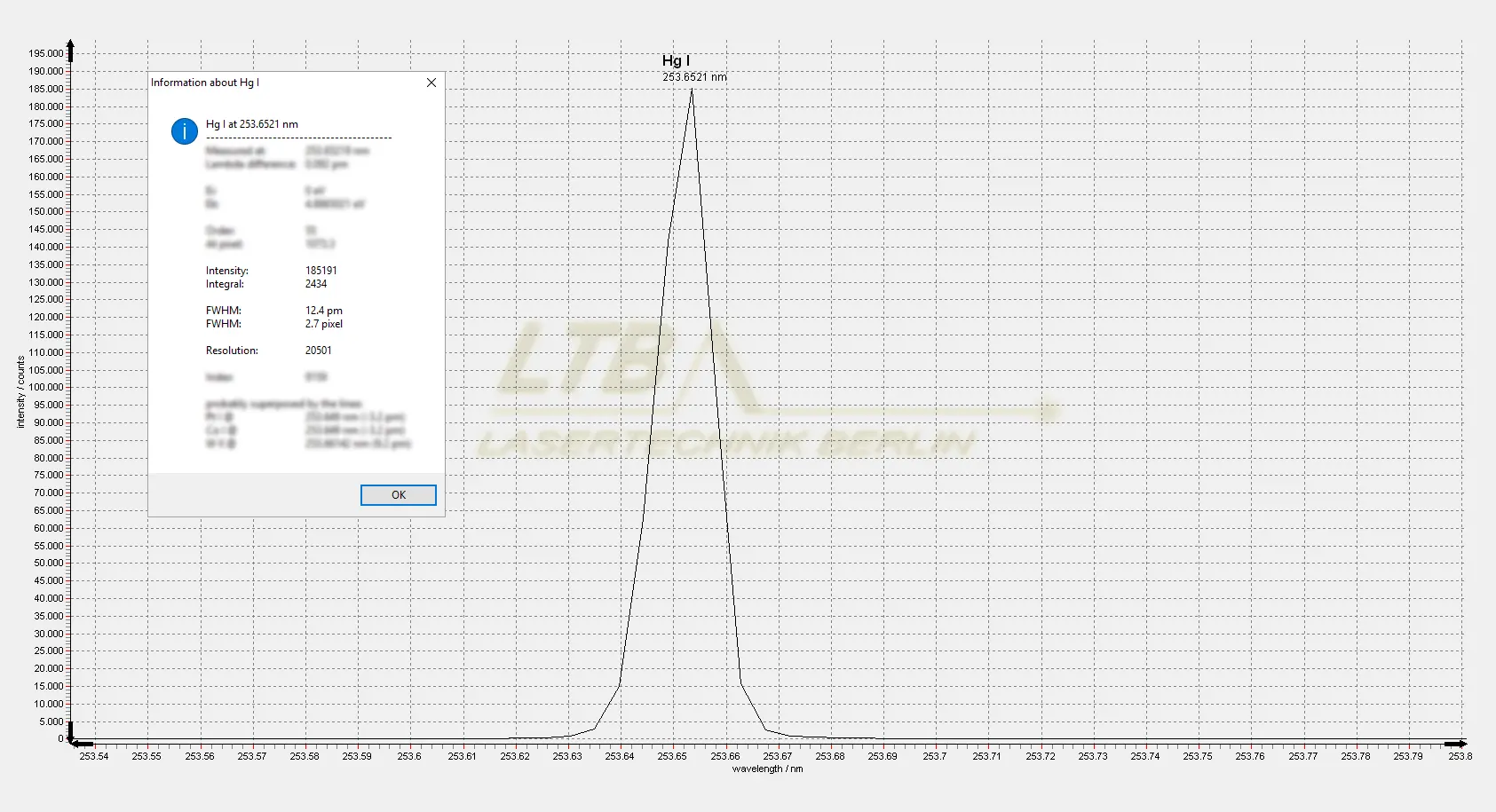

Wavelength calibration: with mercury lamp

Varianten

Setup	1	2	3	4	5	6
Detector	CCD	CCD	CCD	CCD	ICCD	ICCD
Wavelength range¹	190-330 nm	330-850 nm	192-930 nm	250-900 nm	192-433 nm	425-750 nm
Spectral resolution capacity λ/min. measurable FWHM¹	30.000	15.000	15.000	45.000	14.000	20.000
Spectral resolution^1,2	6-11 pm	22-57 pm	13-62 pm	5,6-20 pm	13-31 pm	21-37 pm
Detector resolution	2.048 x 512 px	2.048 x 512 px	2.048 x 2.048 px	2.048 x 2.048 px	1.024 x 1.024 px	1.024 x 1.024 px
Detector image area	27,6 x 6,9 mm²	27,6 x 6,9 mm²	27,6 x 27,6 mm²	27,6 x 27,6 mm²	13,3 x 13,3 mm²	13,3 x 13,3 mm²
Chopper	Yes	Yes	Yes	Yes	No	No
Step width, min.	0,1 µs	0,1 µs	0,1 µs	0,1 µs	1 ns	1 ns
Door width	-	-	-	-	5 ns	5 ns
